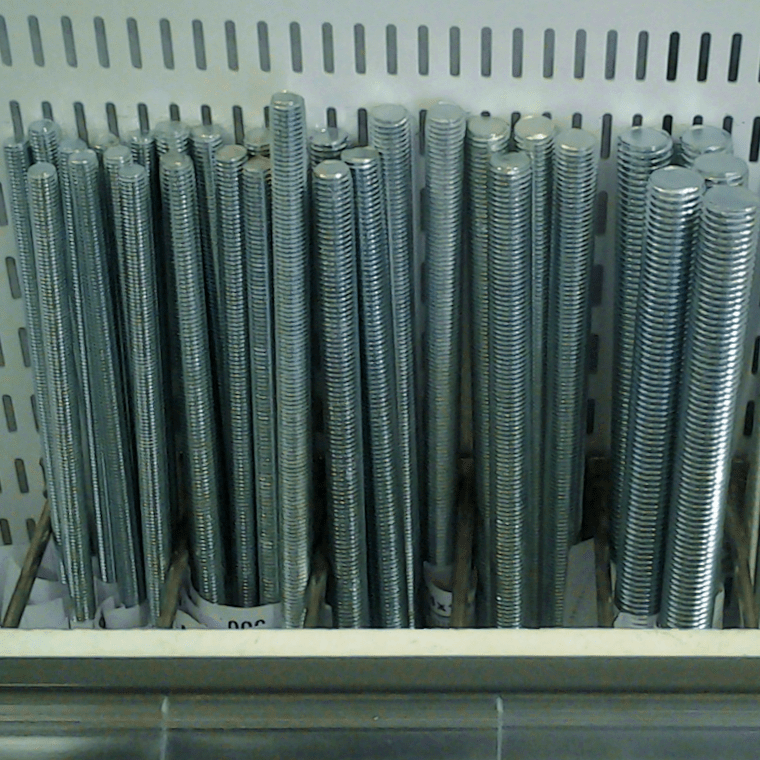

Product information Threaded Rods / Studs (general purpose):
Standards
DIN 975 (threaded rod, 1 m/3 m lengths, cut to size on request), DIN 976 (studs/stud bolts, various end forms)
Materials and property classes
Steel, property classes 4.8, 5.8, 8.8 and 10.9
Stainless steel A2/A4
Standard finish: zinc-plated (blue or yellow passivation), plain, or stainless steel
General specifications
Diameter range: M3 to M64 (larger sizes on request)
Thread: metric coarse (ISO), fine pitch on request
Standard lengths: 1 m and 3 m bars; custom cut lengths and double-end studs available
Function
Threaded rods (all-thread) are fully threaded along their length and used together with nuts and washers to create adjustable, tensioned connections. Studs are threaded at one or both ends, often with an unthreaded shank in between, and are used to permanently fix one end into a component (e.g. a flange or housing) while the free end receives a nut.
Range of application
Structural steelwork, suspended systems (ceiling and pipe hangers), machine construction, formwork, and general assembly wherever a long, adjustable or field-cuttable threaded connection is needed.
